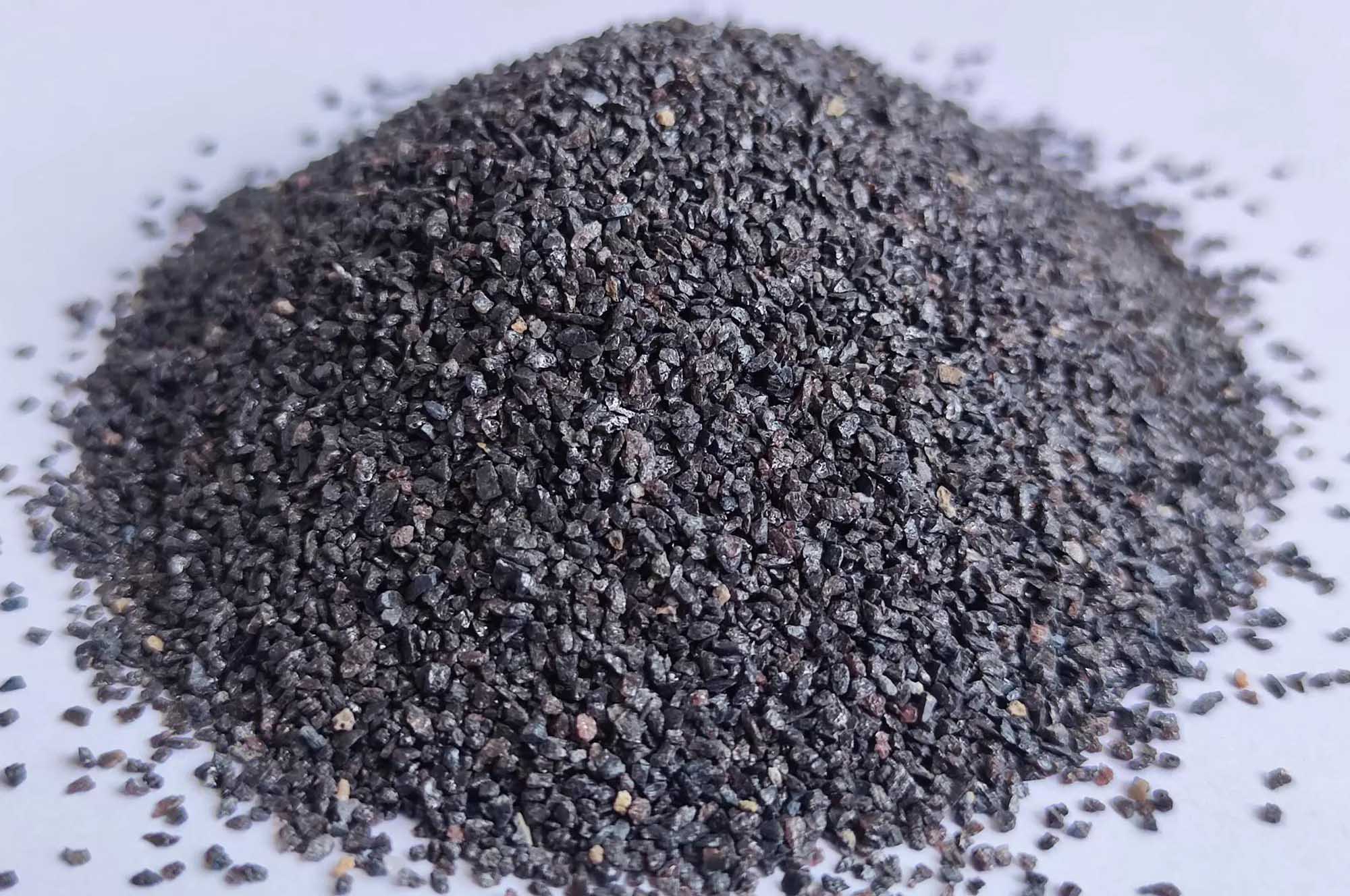

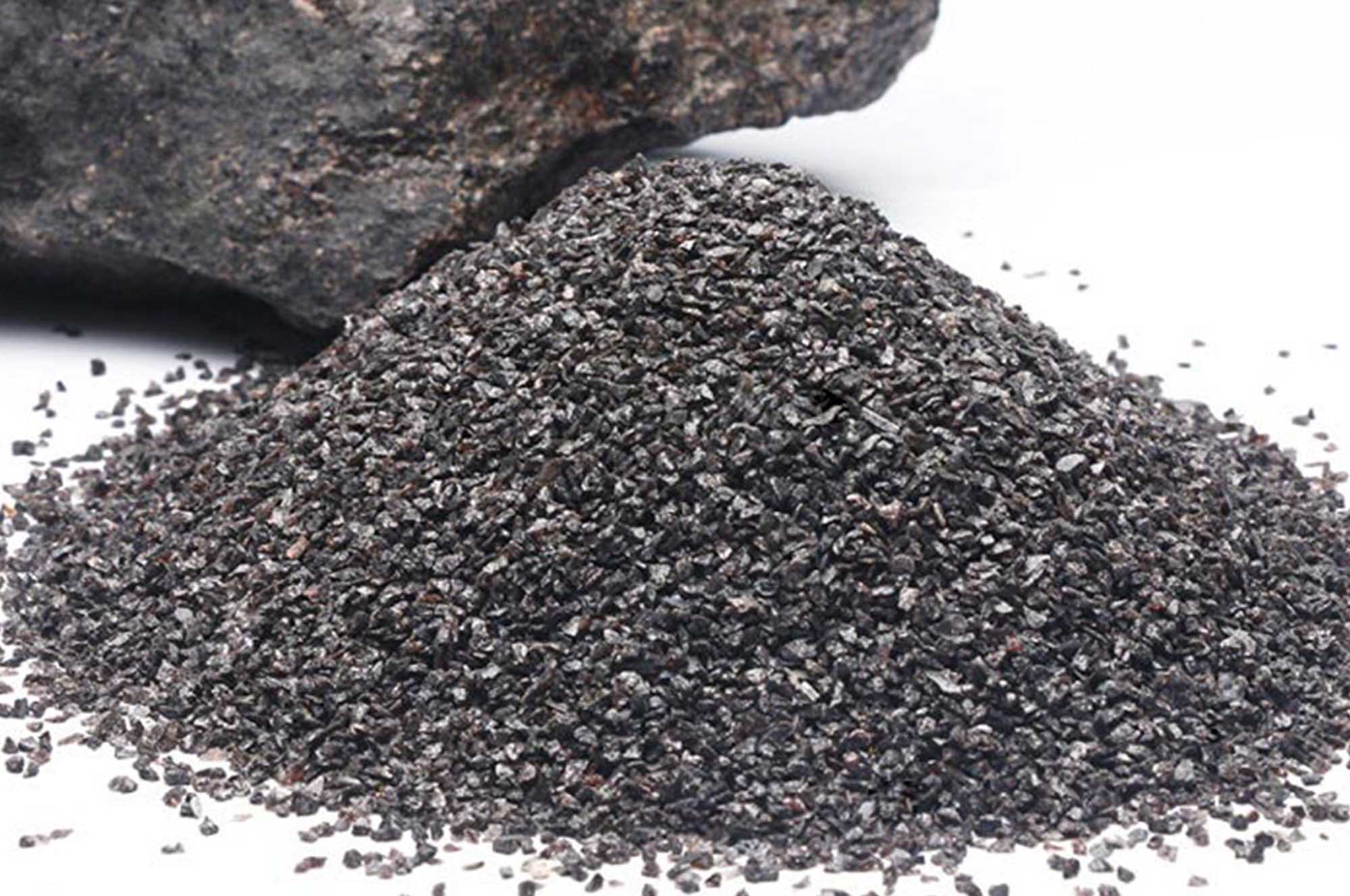

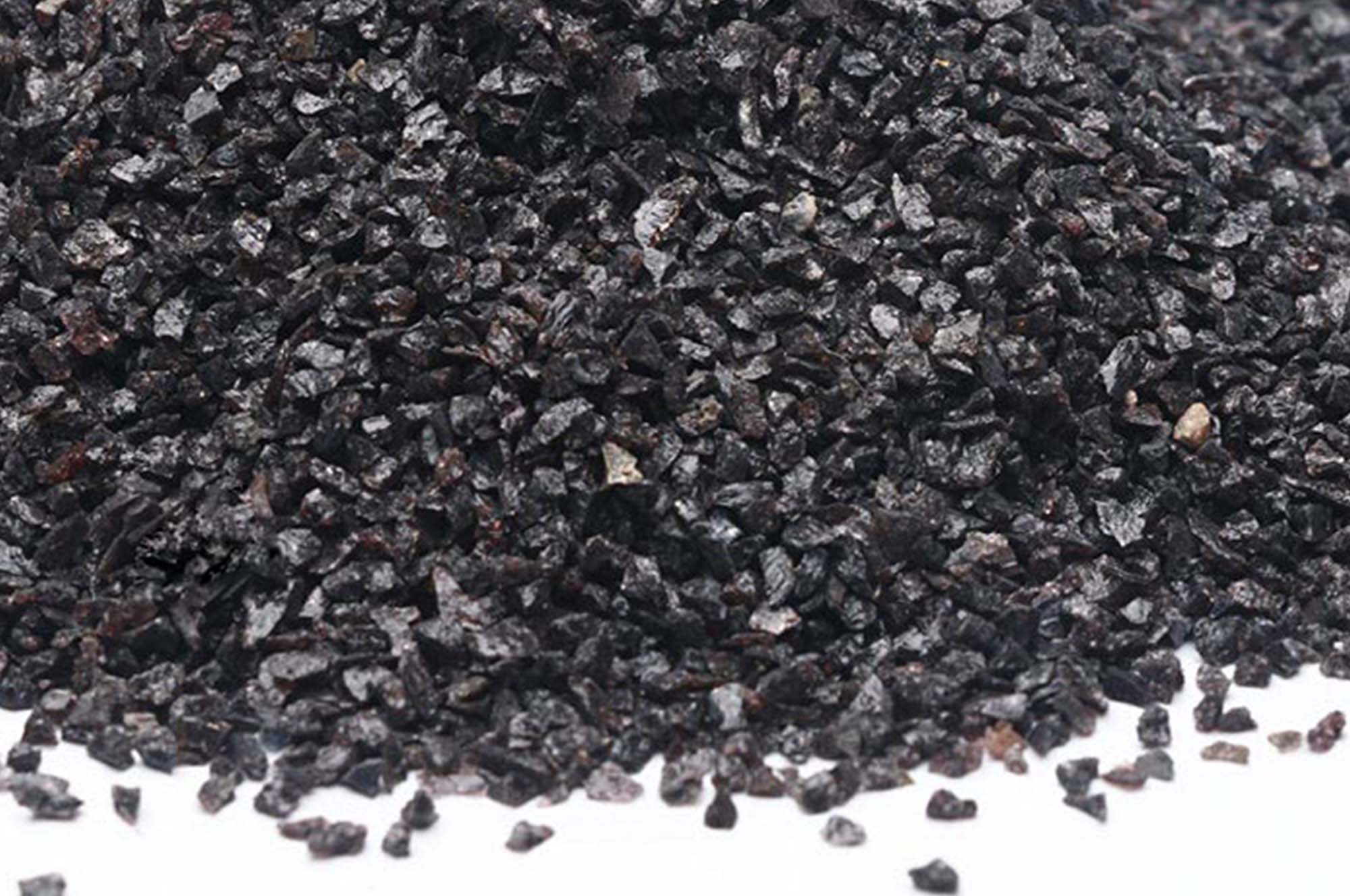

Brown Fused Alumina

The main material of brown fused alumina is bauxite, which is electrically fused in high temperature.It has high toughness, high self-sharpening, lower expansion coefficient, no rusty spot, good hydrophily, high cleanliness, etc. The abrasive tools made of it are suitable for the grinding of carbon steel, malleable cast iron, hard bronze, etc.

Specifications

The main material of brown fused alumina is bauxite, which is electrically fused in high temperature.It has high toughness, high self-sharpening, lower expansion coefficient, no rusty spot, good hydrophily, high cleanliness, etc.  The abrasive tools made of it are suitable for the grinding of carbon steel, malleable cast iron, hard bronze, etc.

It is also widely used in Coated Abrasives, say Abrasive Sanding rolls & sheets, Sanding discs, sanding Pads, etc.In addition, they are also used as refractory materials, chemical additive, precision founding and anti-slid materials.

Chemical Composition

Grit Size

Chemical Composition%(by weight)

AL2O3

TiO2

Cao

F12-F80

P12-P80

95.00-97.00

1.50-3.80

≤0.40

F90-F150

P90-P150

94.00-96.50

F180-F220

P180-P220

93.00-95.50

220#(p220) finer

≥92.00

Physical property

Basic Minerals

Crystal Size (μm)

True   Density

(G/cm³)

Bulk Density (G/cm³)

Hardness (Kg/mm²)

A-Al2O3(%)

400-800

≥3.90

1.40-1.85

1800-2200

The Bulk Density of brown fused alumina

Grit Size

Bulk Density ( g/cm³)

Grit Size

Bulk Density ( g/cm³)

F24

1.80-1.95

F80

1.61-1.76

F30

1.77-1.92

F90

1.59-1.74

F36

1.75-1.90

F100

1.57-1.71

F40

1.73-1.87

F120

1.54-1.68

F46

1.70-1.85

F150

1.50-1.65

F54

1.68-1.83

F180

1.48-1.62

F60

1.66-1.80

F220

1.45-1.58

F70

1.63-1.78



Available Sizes

For Abrasive Industry

F12 – F220(Macro), F240-F1200 (Micro powder)

P12-220, P240-P3000

JIS # 8~JIS # 6000

For Refractory

0-1mm, 1-3mm, 3-5mm,5-8mm, 0-10mm

Application

Bonded and Resinoid grinding wheel

Refractory material

Blasting media

Anti-skid materials
